2D & 3D CAD ファイルは以下の各ページでダウンロード可能です。

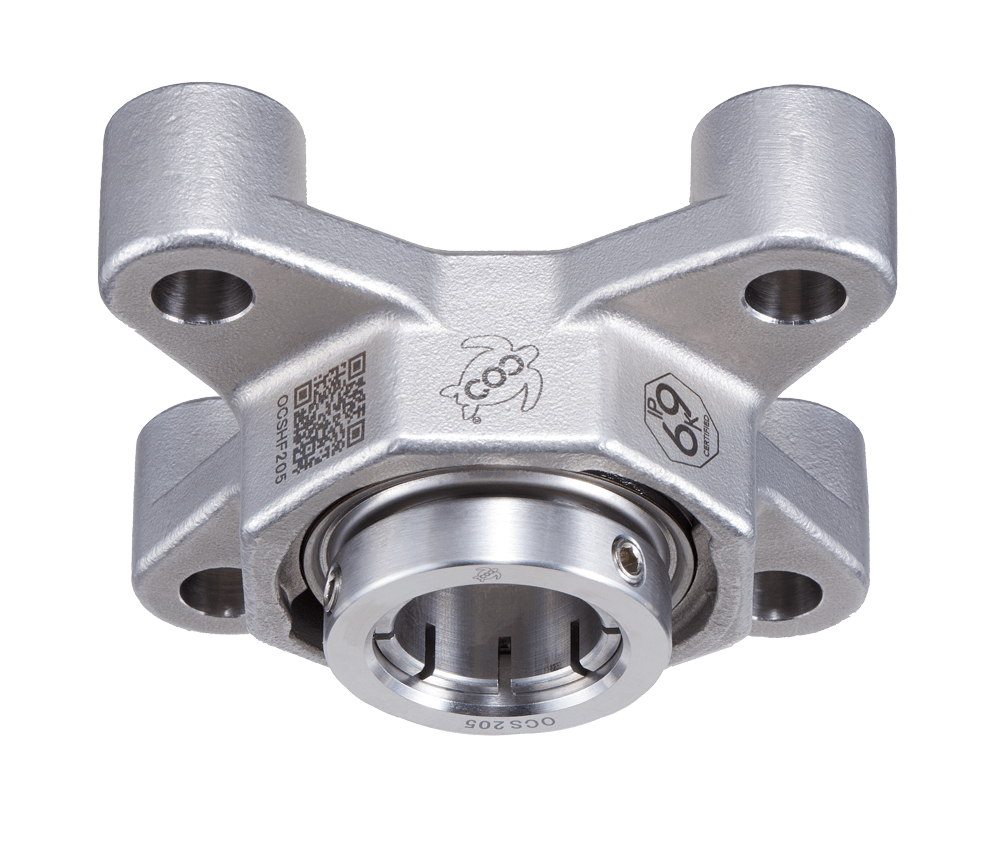

OCSHF
| Unit No. | Bearing No. | Shaft Dia. | L | J | Y | Bolt Size | Cr | Cor |
|---|---|---|---|---|---|---|---|---|
| OCSHF204-12M | OCS204-12M | 12 mm | 86 mm | 64 mm | 12.7 mm | M10 | 11.1 kN | 5.41 kN |
| OCSHF204-8 | OCS204-8 | 1/2 in | 3 3/8 in | 2 33/64 in | 1/2 in | 3/8 in | 2497 lbf | 1217 lbf |
| OCSHF204-15M | OCS204-15M | 15 mm | 86 mm | 64 mm | 12.7 mm | M10 | 11.1 kN | 5.41 kN |
| OCSHF204-10 | OCS204-10 | 5/8 in | 3 3/8 in | 2 33/64 in | 1/2 in | 3/8 in | 2497 lbf | 1217 lbf |
| OCSHF204-17M | OCS204-17M | 17 mm | 86 mm | 64 mm | 12.7 mm | M10 | 11.1 kN | 5.41 kN |
| OCSHF204-12 | OCS204-12 | 3/4 in | 3 3/8 in | 2 33/64 in | 1/2 in | 3/8 in | 2497 lbf | 1217 lbf |
| OCSHF204 | OCS204 | 20 mm | 86 mm | 64 mm | 12.7 mm | M10 | 11.1 kN | 5.41 kN |
| OCSHF205-14 | OCS205-14 | 7/8 in | 3 3/4 in | 2 3/4 in | 1/2 in | 3/8 in | 2745 lbf | 1462 lbf |
| OCSHF205-15 | OCS205-15 | 15/16 in | 3 3/4 in | 2 3/4 in | 1/2 in | 3/8 in | 2745 lbf | 1462 lbf |
| OCSHF205 | OCS205 | 25 mm | 95 mm | 70 mm | 12.7 mm | M10 | 12.2 kN | 6.5 kN |
| OCSHF205-16 | OCS205-16 | 1 in | 3 3/4 in | 2 3/4 in | 1/2 in | 3/8 in | 2745 lbf | 1462 lbf |
| OCSHF206-18 | OCS206-18 | 1 1/8 in | 4 1/4 in | 3 17/64 in | 1/2 in | 3/8 in | 3757 lbf | 1867 lbf |
| OCSHF206 | OCS206 | 30 mm | 108 mm | 83 mm | 12.7 mm | M10 | 16.7 kN | 9.11 kN |
| OCSHF206-19 | OCS206-19 | 1 3/16 in | 4 1/4 in | 3 17/64 in | 1/2 in | 3/8 in | 3757 lbf | 1867 lbf |
| OCSHF206-20 | OCS206-20 | 1 1/4 in | 4 1/4 in | 3 17/64 in | 1/2 in | 3/8 in | 3757 lbf | 1867 lbf |
| OCSHF207-20 | OCS207-20 | 1 1/4 in | 4 19/32 in | 3 5/8 in | 1/2 in | 7/16 in | 4927 lbf | 2812 lbf |
| OCSHF207-21 | OCS207-21 | 1 5/16 in | 4 19/32 in | 3 5/8 in | 1/2 in | 7/16 in | 4927 lbf | 2812 lbf |
| OCSHF207-22 | OCS207-22 | 1 3/8 in | 4 19/32 in | 3 5/8 in | 1/2 in | 7/16 in | 4927 lbf | 2812 lbf |
| OCSHF207 | OCS207 | 35 mm | 117 mm | 92 mm | 12.7 mm | M12 | 21.9 kN | 12.5 kN |
| OCSHF207-23 | OCS207-23 | 1 7/16 in | 4 19/32 in | 3 5/8 in | 1/2 in | 7/16 in | 4927 lbf | 2812 lbf |
| OCSHF208-24 | OCS208-24 | 1 1/2 in | 5 1/8 in | 4 1/64 in | 1/2 in | 1/2 in | 5602 lbf | 3262 lbf |
| OCSHF208 | OCS208 | 40 mm | 130 mm | 102 mm | 12.7 mm | M14 | 24.9 kN | 14.5 kN |
