2D & 3D CAD ファイルは以下の各ページでダウンロード可能です。

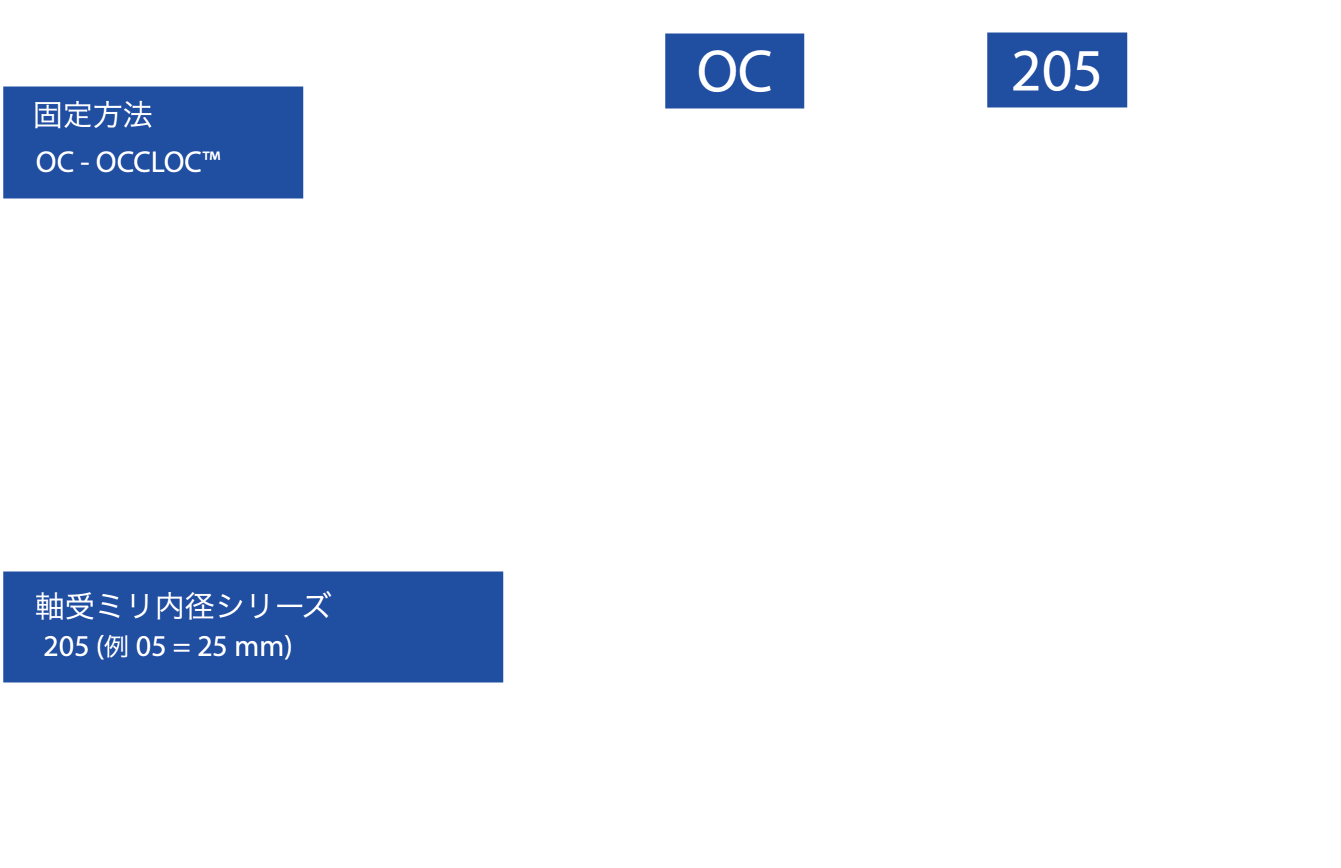

OCSFL
| Unit No. | Bearing No. | Shaft Dia. | H | L | J | Bolt Size | Cr | Cor |
|---|---|---|---|---|---|---|---|---|
| OCSFL204-12M | OCS204-12M | 12 mm | 113 mm | 58 mm | 90 mm | M10 | 11.1 kN | 5.41 kN |
| OCSFL204-8 | OCS204-8 | 1/2 in | 4 7/16 in | 2 9/32 in | 3 35/64 in | 3/8 in | 2497 lbf | 1217 lbf |
| OCSFL204-15M | OCS204-15M | 15 mm | 113 mm | 58 mm | 90 mm | M10 | 11.1 kN | 5.41 kN |
| OCSFL204-10 | OCS204-10 | 5/8 in | 4 7/16 in | 2 9/32 in | 3 35/64 in | 3/8 in | 2497 lbf | 1217 lbf |
| OCSFL204-17M | OCS204-17M | 17 mm | 113 mm | 58 mm | 90 mm | M10 | 11.1 kN | 5.41 kN |
| OCSFL204-12 | OCS204-12 | 3/4 in | 4 7/16 in | 2 9/32 in | 3 35/64 in | 3/8 in | 2497 lbf | 1217 lbf |
| OCSFL204 | OCS204 | 20 mm | 113 mm | 58 mm | 90 mm | M10 | 11.1 kN | 5.41 kN |
| OCSFL205-14 | OCS205-14 | 7/8 in | 5 1/8 in | 2 15/32 in | 3 57/64 in | 1/2 in | 2745 lbf | 1462 lbf |
| OCSFL205-15 | OCS205-15 | 15/16 in | 5 1/8 in | 2 15/32 in | 3 57/64 in | 1/2 in | 2745 lbf | 1462 lbf |
| OCSFL205 | OCS205 | 25 mm | 130 mm | 63 mm | 99 mm | M14 | 12.2 kN | 6.5 kN |
| OCSFL205-16 | OCS205-16 | 1 in | 5 1/8 in | 2 15/32 in | 3 57/64 in | 1/2 in | 2745 lbf | 1462 lbf |
| OCSFL206-18 | OCS206-18 | 1 1/8 in | 5 13/16 in | 3 in | 4 19/32 in | 1/2 in | 3757 lbf | 1867 lbf |
| OCSFL206 | OCS206 | 30 mm | 148 mm | 76 mm | 117 mm | M14 | 16.7 kN | 9.11 kN |
| OCSFL206-19 | OCS206-19 | 1 3/16 in | 5 13/16 in | 3 in | 4 19/32 in | 1/2 in | 3757 lbf | 1867 lbf |
| OCSFL206-20 | OCS206-20 | 1 1/4 in | 5 13/16 in | 3 in | 4 19/32 in | 1/2 in | 3757 lbf | 1867 lbf |
| OCSFL207-20 | OCS207-20 | 1 1/4 in | 6 11/32 in | 3 3/8 in | 5 1/8 in | 1/2 in | 4927 lbf | 2812 lbf |
| OCSFL207-21 | OCS207-21 | 1 5/16 in | 6 11/32 in | 3 3/8 in | 5 1/8 in | 1/2 in | 4927 lbf | 2812 lbf |
| OCSFL207-22 | OCS207-22 | 1 3/8 in | 6 11/32 in | 3 3/8 in | 5 1/8 in | 1/2 in | 4927 lbf | 2812 lbf |
| OCSFL207 | OCS207 | 35 mm | 161 mm | 86 mm | 130 mm | M14 | 21.9 kN | 12.5 kN |
| OCSFL207-23 | OCS207-23 | 1 7/16 in | 6 11/32 in | 3 3/8 in | 5 1/8 in | 1/2 in | 4927 lbf | 2812 lbf |
| OCSFL208-24 | OCS208-24 | 1 1/2 in | 6 7/8 in | 3 11/16 in | 5 43/64 in | 1/2 in | 5602 lbf | 3262 lbf |
| OCSFL208 | OCS208 | 40 mm | 175 mm | 94 mm | 144 mm | M14 | 24.9 kN | 14.5 kN |
