File CAD 2D & 3D tersedia pada setiap halaman di bawah ini.

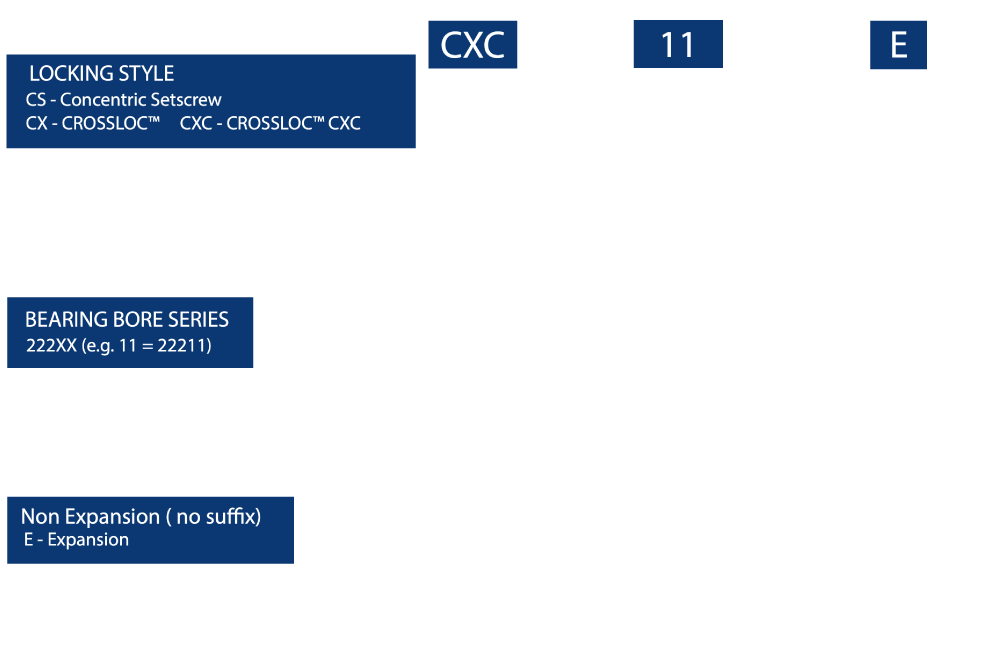

CXC2EP
| Unit No. | Bearing No. | Shaft Dia. | H | L | J | Bolt Size | Cr | Cor |
|---|---|---|---|---|---|---|---|---|
| CXC2EP08-107 | 22208-107CXC | 1 7/16 in | 1 7/8 in | 7 5/16 in | 5 3/4 in | 1/2 in | 20408 lbf | 21623 lbf |
| CXC2EP09-108 | 22209-108CXC | 1 1/2 in | 2 1/8 in | 7 13/16 in | 6 1/4 in | 1/2 in | 21150 lbf | 23625 lbf |
| CXC2EP09-111 | 22209-111CXC | 1 11/16 in | 2 1/8 in | 7 13/16 in | 6 1/4 in | 1/2 in | 21150 lbf | 23625 lbf |
| CXC2EP10-115 | 22210-115CXC | 1 15/16 in | 2 1/4 in | 8 21/32 in | 7 in | 5/8 in | 22095 lbf | 25313 lbf |
| CXC2EP11-203 | 22211-203CXC | 2 3/16 in | 2 1/2 in | 9 5/8 in | 7 3/4 in | 5/8 in | 27450 lbf | 32625 lbf |
| CXC2EP13-207 | 22213-207CXC | 2 7/16 in | 2 3/4 in | 10 5/32 in | 8 1/2 in | 5/8 in | 40050 lbf | 47700 lbf |
| CXC2EP13-208 | 22213-208CXC | 2 1/2 in | 2 3/4 in | 10 5/32 in | 8 1/2 in | 5/8 in | 40050 lbf | 47700 lbf |
| CXC2EP15-211 | 22215-211CXC | 2 11/16 in | 3 1/8 in | 11 21/32 in | 9 1/2 in | 3/4 in | 42075 lbf | 51300 lbf |
| CXC2EP15-212 | 22215-212CXC | 2 3/4 in | 3 1/8 in | 11 21/32 in | 9 1/2 in | 3/4 in | 42075 lbf | 51300 lbf |
| CXC2EP15-215 | 22215-215CXC | 2 15/16 in | 3 1/8 in | 11 21/32 in | 9 1/2 in | 3/4 in | 42075 lbf | 51300 lbf |
| CXC2EP15-300 | 22215-300CXC | 3 in | 3 1/8 in | 11 21/32 in | 9 1/2 in | 3/4 in | 42075 lbf | 51300 lbf |
| CXC2EP18-307 | 22218-307CXC | 3 7/16 in | 3 3/4 in | 13 3/16 in | 11 in | 7/8 in | 67950 lbf | 83925 lbf |
| CXC2EP18-308 | 22218-308CXC | 3 1/2 in | 3 3/4 in | 13 3/16 in | 11 in | 7/8 in | 67950 lbf | 83925 lbf |
Cara memasang dan melepas CROSSLOC™ Units
Cara memasang dan melepas CROSSLOC™ Unit Expansi
