Interchange Guide

CX4SAF

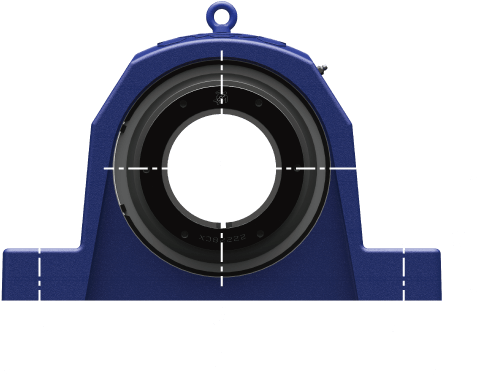

Unit No. Bearing No. Shaft Dia. Sleeve H L J Bolt Size Cr Cor
CX4SAF15-207 22215-207CX 2 7/16 in AA2315X 3 1/4 in 11 3/16 in 9 1/8 in 1/2 in 42075 lbf 51300 lbf
CX4SAF15-065 22215-065CX 65 mm A2315X 82.55 mm 284 mm 232 mm M12 187 kN 228 kN
CX4SAF16-211 22216-211CX 2 11/16 in AA2316X 3 1/2 in 13 in 10 5/16 in 5/8 in 50175 lbf 60525 lbf
CX4SAF16-070 22216-070CX 70 mm A2316X 88.90 mm 330 mm 262 mm M16 223 kN 269 kN
CX4SAF17-215 22217-215CX 2 15/16 in AA2317X 3 3/4 in 13 in 10 5/16 in 5/8 in 59175 lbf 71325 lbf
CX4SAF17-075 22217-075CX 75 mm A2317X 95.25 mm 330 mm 262 mm M16 263 kN 317 kN
CX4SAF20-307 22220-307CX 3 7/16 in AA2320X 4 1/2 in 15 9/32 in 12 3/8 in 3/4 in 83475 lbf 105975 lbf
CX4SAF20-090 22220-090CX 90 mm A2320X 114.30 mm 388 mm 314 mm M20 371 kN 471 kN
CX4SAF22-100 22222-100CX 100 mm A2322X 125.41 mm 419 mm 344 mm M20 606 kN 731 kN
CX4SAF22-315 22222-315CX 3 15/16 in A2322X 4 15/16 in 16 1/2 in 13 9/16 in 3/4 in 136350 lbf 164475 lbf
CX4SAF26-407 22226-407CX 4 7/16 in AA2326X 6 in 18 3/8 in 15 9/32 in 7/8 in 182250 lbf 260550 lbf
CX4SAF26-115 22226-115CX 115 mm A2326X 152.4 mm 467 mm 388.5 mm M22 810 kN 1158 kN
CX4SAF28-125 22228-125CX 125 mm A2328X 152.4 mm 508 mm 419 mm M24 911 kN 1243 kN
CX4SAF28-415 22228-415CX 4 15/16 in AA2328X 6 in 20 in 16 1/2 in 1 in 204975 lbf 279675 lbf
CX4SAF32-507 22232-507CX 5 7/16 in AA2332X 6 11/16 in 21 7/8 in 18 5/16 in 1 in 270000 lbf 393300 lbf
CX4SAF32-508 22232-508CX 5 1/2 in AE2332X 6 11/16 in 21 7/8 in 18 5/16 in 1 in 270000 lbf 393300 lbf
CX4SAF32-140 22232-140CX 140 mm A2332X 169.86 mm 556 mm 465 mm M24 1200 kN 1748 kN
